uIoT gateway project update

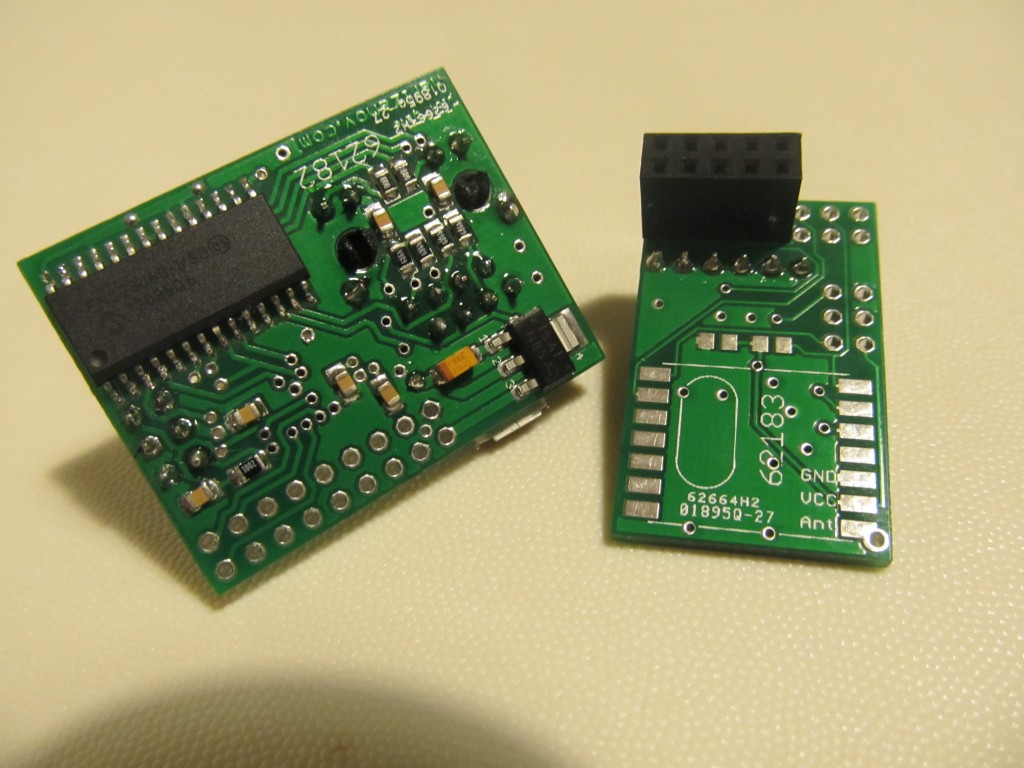

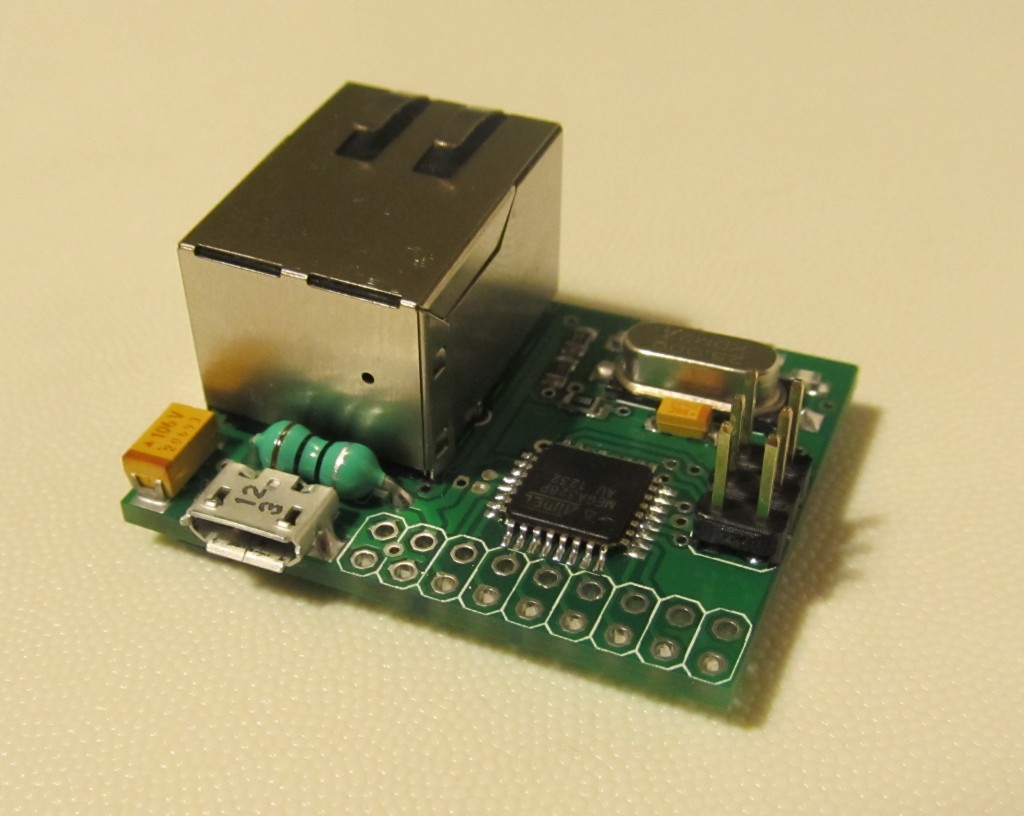

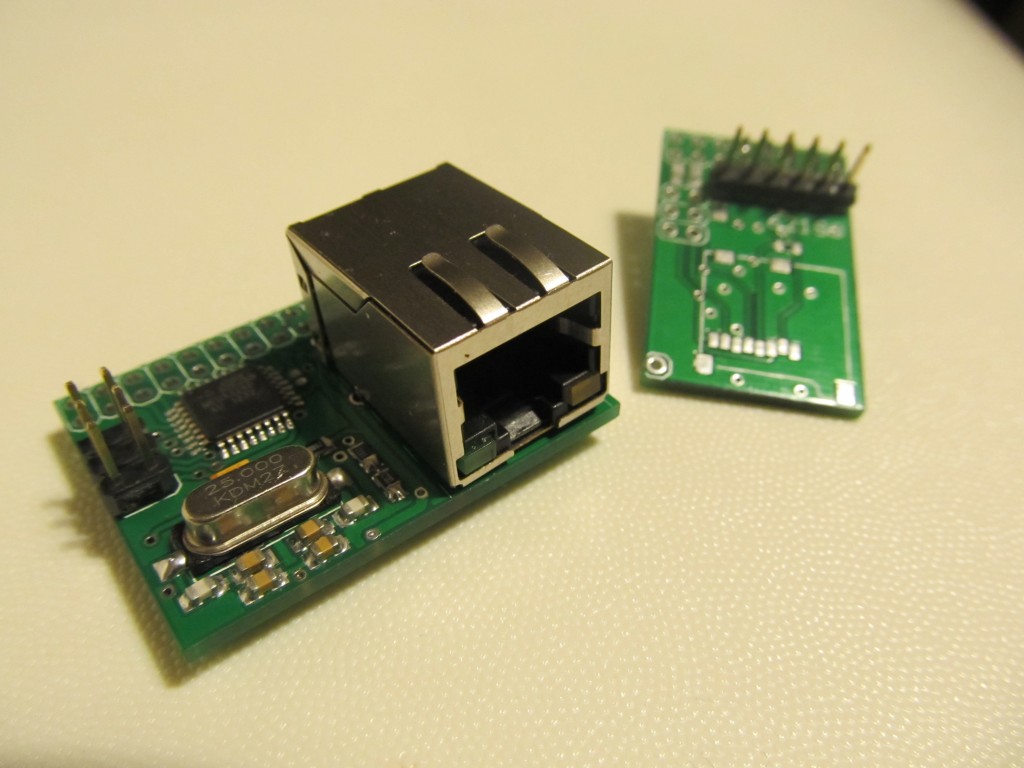

My uIoT gateway project has been put on hold lately, I have the PCBs ready for more than a month now, but never had the time to make one and test it. I finally put one together today, but apparently have ordered the wrong MagJack 🙁 Oh well, putting it on hold again until the correct one arrives. Also, I have re-designed the shield I mentioned here, not it contains a microSD card slot, a LED, a FTDI connector and a RFM12B module too. Anyway, some pictures of the thing:IMG_1794 IMG_1795



IMG_1796
