TFT32 – ESP32 powered IoT control hub with TFT

39.0044.00

ESP32 based IoT hub/gateway with touch, TFT, RTC, RFM69 ISM radio

Clear
SKU: TFT32 Categories: , , Tags: , , , , , , , , ,

Description

The TFT32 project is an ESP32 powered multi-purpose IoT gateway/control hub with TFT, touch and various other helper peripherals.

Please visit the TFT32 product WIKI for more details.

Features

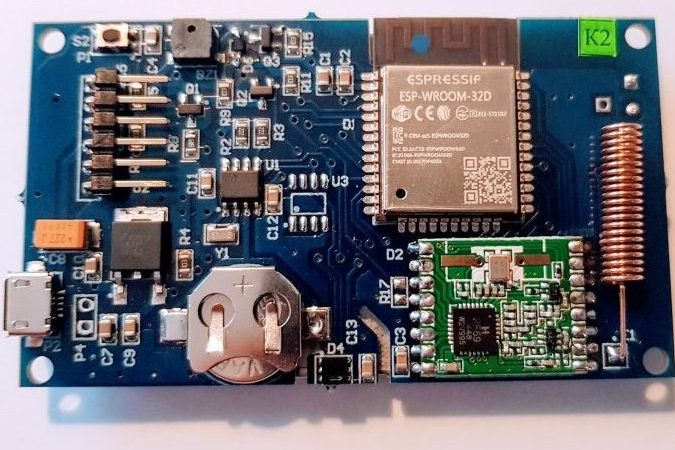

  • Powered by the popular ESP32 SoC

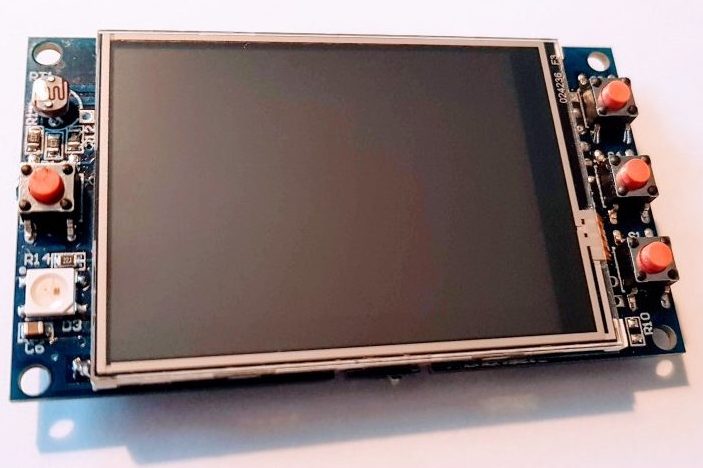

  • ILI9341 based 2.4″ TFT with resistive touch, PWM dimming control
  • Light sensor (LDR)
  • 433Mhz RFM69 ISM radio
  • One WS2812B RGB LED (Neopixel)
  • Piezo buzzer for audible¬†feedback
  • HTU21D/SHT21 temperature/humidity sensor
  • DS1338 real-time clock with battery backup (CR1220 battery not included)
  • Four multi-purpose¬†buttons
  • Option for ATSHA204 crypto authentication device (not included)

Page views: 967

Additional information

Weight 0.05 kg
