Testing an interesting Raspberry pi display, piggy backs the RPI, has speakers, capacitive touch and 1024×600 resolution. Planning on using it as always-on home automation control center
Raspberry pi display, piggy backs the RPI
Low cost monochrome 7 segment LCD display
Dug up an old prototype of a low cost monochrome 7 segment LCD display + DS18B20 temperature sensor + Atmega328 + RFM69 433Mhz transceiver project. 30uA sleep current. e-paper is still relatively more expensive alternative. #IoT
49mA with display off and maximum wifi power savings
49mA with display off and maximum wifi power savings + DFS enabled while maintaining WiFi and 433Mhz connections to low power battery sensors Note that this is at 5.12V or roughly 80mA on 3.3V; CPU speed varied between 160 and 80Mhz as needed
GUI to show serial debug output to the TFT
Added GUI to show serial debug output to the TFT https://youtu.be/19-C5f2eHmQ #esp32 #iot #lvgl #embedded
ESP32 based thermostat controller/gateway project with TFT
It's close to a year since I started working on my ESP32 based thermostat controller/gateway project with TFT display. It now has 120K+ lines of code (components included), work done entirely at nights/weekends. What's the longest you have worked on a passion project? #IoT https://x.com/mharizanov/status/1027868368500666368

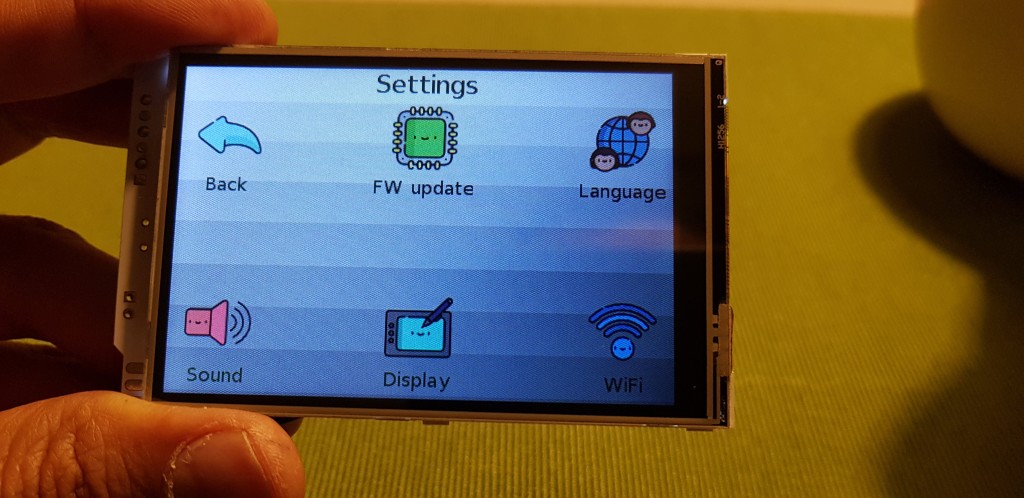

Experimenting with a 3.5″ TFT
Testing the TFT32 ESP32 project on a 3.5″ ILI9488 480×320 resistive touch TFT – mostly a matter of adapting the display drivers.
3.5″ TFT
New post: Experimenting with a 3.5″ TFT https://wp.me/pawL3e-1hq
Testing ILI9488 3.5″ TFT clocked @ 40Mhz
Testing ILI9488 3.5" TFT clocked @ 40Mhz in 4 wire SPI mode with DMA, looks pretty responsive. #LittlevGL #ESP32 https://youtu.be/HVVAo9QdOfM
ESP32 + 480*320 ILI9488 TFT with touch + LORA
It lives! #esp32 + 480*320 ILI9488 #TFT with touch + #LORA (not yet populated on the PCB) + RTC + piezo buzzer
Prototype PCBs for ESP32 3.5″ TFT IoT control hub
Prototype PCBs for ESP32 3.5" TFT IoT control hub project
3.5″ TFT+touch version of my IoT control hub project
Drafting a 3.5" TFT+touch version of my IoT control hub project; upgraded to ESP32 WROVER to benefit from the extra PSRAM. Planning on adding LoRa support
3.5″ 480×320 TFT with touch
Bigger is better.. 3.5" 480×320 TFT with touch for a future version of my #ESP32 IoT control hub project
Dynamic frequency shifting, modem light sleep and TFT
Experimenting with dynamic frequency shifting, modem light sleep and TFT dimming to bring down power consumption to roughly 60mA while maintaining Wi-Fi connection to MQTT #ESP32
TFT32 ESP32 based IoT control hub gateway with TFT
New post: TFT32 – ESP32 based IoT control hub/gateway with TFT, RFM69 and more https://wp.me/sawL3e-tft32

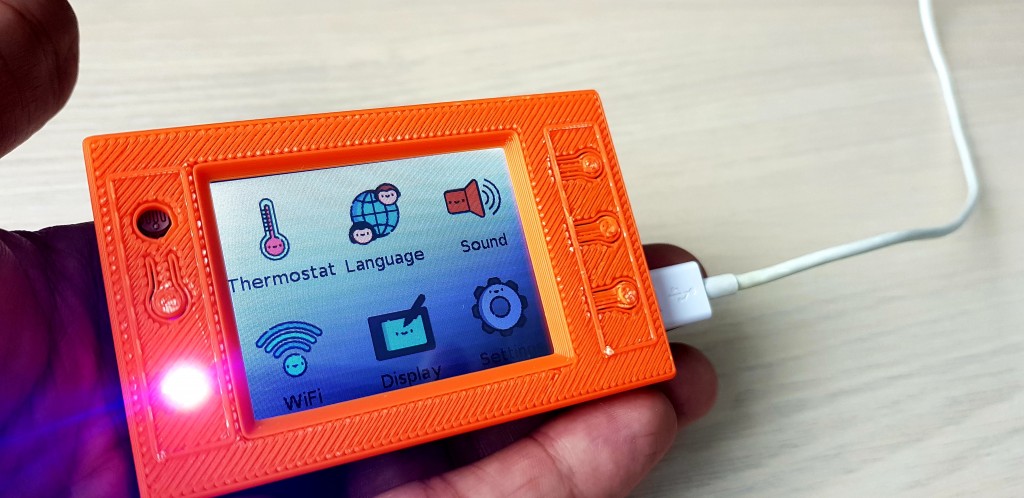

TFT32 – ESP32 based IoT control hub/gateway with TFT, RFM69 and more
TFT32 is my ESP32 based IoT control hub/gateway with touch TFT and RFM69 – and why I want less cloud in my home automation.
20 pcs ESP32 TFT project ready
20 pcs #ESP32 TFT project ready 🙂
GUI to monitor OTA updates to ESP32 TFT project
Added GUI to monitor OTA updates to #ESP32 TFT project
3D printed enclosure for ESP32 TFT project
Testing 3D printed enclosure for #ESP32 TFT project #IoT, looks and feels much more finished now 🙂
RFM69 for a LoRaWAN on my ESP32 TFT project
TO-DO: research project feasibility: swap the RFM69 for a LoRaWAN on my #ESP32 TFT project and use it as SIM-less urban car telemetry/location tracker
20 PCBs for revision 6 of my ESP32 TFT project
20 PCBs for revision 6 of my #ESP32 #TFT project arrived. I think that it is complete now, need to stop shelling money on perfecting it at least 🙂 Now awaiting components delivery to run a small batch SMD assembly. I will have few spares to sell late December
3D-printable enclosure for my ESP32 TFT display project
The 3D-printable enclosure for my #ESP32 TFT display project is taking shape, but still WIP.. #IoT
3D-printable enclosure for my ESP32 TFT IoT project
Working on a 3D-printable enclosure for my #ESP32 TFT #IoT project
Touch display arrived today
Touch display arrived today. Did some SMD soldering by hand, all works well at first glance. Tons of coding ahead.. #ESP32 #TFT #IoT #RFM69
Pushing an ILI9341 TFT to its limits with 60MHz DMA-enabled
Pushing an ILI9341 TFT to its limits with 60MHz DMA-enabled SPI on #ESP32 Correction: SPI can only run on 80/n frequencies [n between 1 and 8], so 8MHz, 8.89MHz, 10MHz, 11.43MHz, 16MHz, 20MHz, 26.67MHz, 40MHz, 80MHz . Setting SPI clock to 60MHz actually meant it got mapped to 40MHz, anything>60MHz meant setting to 80MHz. That…
LiPo batteries for an upcoming ESP32 e-paper display project
LiPo batteries for an upcoming #ESP32 e-paper display project arrived
ESP32 TFT project with a resistive touchscreen
Did another PCB revision to my #ESP32 TFT project to allow the use of a resistive touchscreen. Did that after seeing my daughter push the screen on a prototype of my non-touch version with a finger in an attempt to use the GUI.. obviously, button-controlled GUI is not intuitive
Button driven touch-less GUI on ILI9341 320×240 TFT
Testing button driven (touch-less) GUI on ILI9341 320×240 TFT using #LittlevGL powered by #ESP32
Testing Ili9341 TFT hardware scrolling
Testing Ili9341 TFT hardware scrolling with appropriate use case #ESP32
Running TFT demo on my ESP32 gateway project
Running TFT demo on my #ESP32 gateway project
TFT support to a RFM69+BLEMQTT gateway PoC project
Added TFT support to a RFM69+BLE<–>MQTT gateway PoC project. So many ideas, so little free time to materialize them..
Two color e-paper display
Toying with a two color e-paper display, amazing technology.. Thinking of low power battery display applications #iot
Working prototype of ultra low power LCD display
Working prototype of ultra low power (20 uA) LCD display for battery operated wireless temperature #IoT node
