Tweeting silicon

Here is a fun project for I did couple days ago: a tweeting ESP8266. The typical approach when dealing with such task (and probably the better) is to use a proxy service like ThingSpeak’s ThingTweetPushingBox or by building proxy yourself with Node-RED or mqttwarn. It is much more fun though to perform a direct tweet from a microcontroller. Just think about the complexity of using TLS and oAuth along with Twitter’s API, all that done from a $5 Wi-Fi connected SoC..

Getting this done was pretty much straight forward except for the hmac-sha1 hashing of the oAuth base string. Turned out that the hmac-sha1 implementation in ESP8266’s SDK only supports keys of size less the block size (64 bytes), while Twitter needs much larger key for the signature. Wikipedia’s article on hmac-sha1 hashing explains the approach to that case and I was able to generate a correct hash with one additional SHA1 applied to the key to reduce it to 20 bytes.

    if (length(key) > blocksize) then
        key = hash(key) // keys longer than blocksize are shortened
    end if

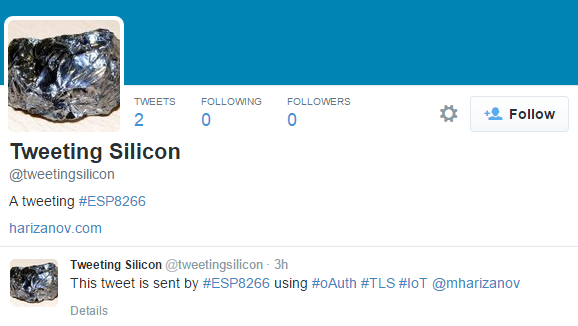

So my ESP8266 can now  tweet, I created a dedicated Twitter account for it named “Tweeting silicon” @tweetingsilicon

tweeting_silicon

Code for the project is available on Github. Code is dirty, please contribute to improve it.
