Interfacing with Paradox home security system attempt 2

I toyed a bit with the Paradox security protocol last year, tapping into the keypad’s interface in an attempt to decode the messages being exchanged between the base station and the keypads. I had some success: I was able to see the keys being pressed, but what was more important to me was the state of the alarm system and each room’s PIR + each door/window’s reed switch. That didn’t work out very well and I quickly abandoned the project.

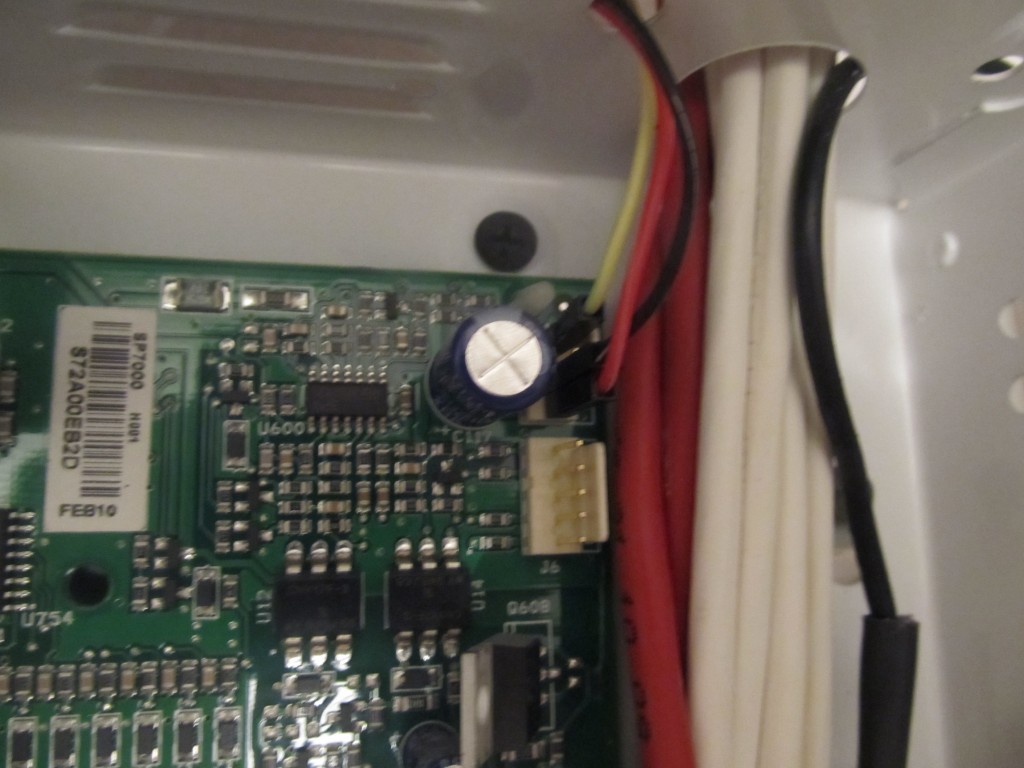

Until today. I decided to revisit my work and inspect the options at the base station Spectra SP7000. I noticed a 4 pin port labeled ‘Serial’ and hooked my oscilloscope to identify what’s on there. Looked like the port provides ~13V and TX/RX lines at 5V. I hooked my FTDI cable  set to 9600 Baud, 1 start bit, 8 data bits, 1 stop bit and no parity and it started spitting out chunks of 37 bytes. I then remembered that someone sent me a Paradox protocol documentation over the email following my last year’s attempt to hack in, but it seemed quite different from what I was getting at the keypad level and I just ignored it. Looking at it again today showed me exactly what I was looking for: the 37 bytes protocol:

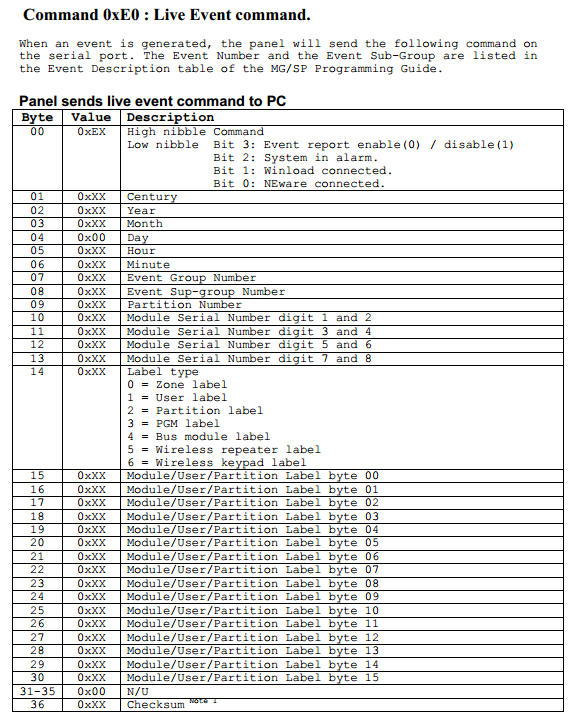

paradox_serial

I am interested in the event group, event sub-group and the command byte.

Event codes 00 and 01 are zone closed and zone opened respectively and the event sub-group specifies the zone. There are other event codes as well, but I am only interested in these.

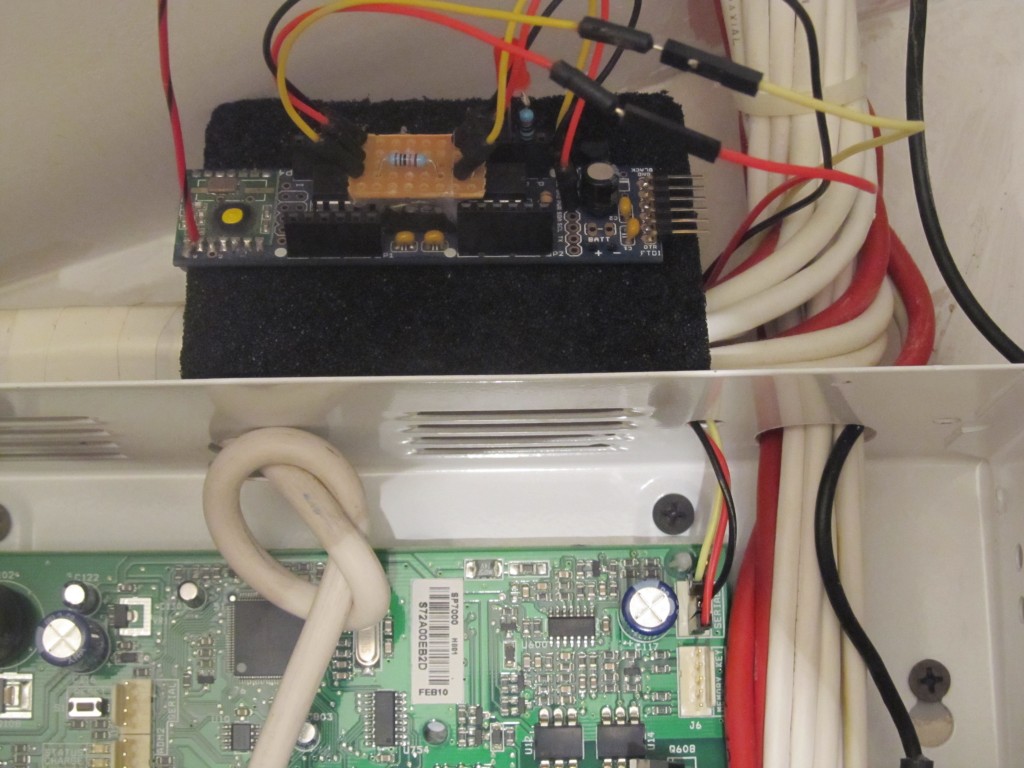

I decided to use a JeeNode v6 to tap into the serial port and transmit the event to my home automation system. The JeeNode runs on 3.3V so I had to create a voltage divider (used 10K:10K, one of the resistors isn’t clearly visible on the picture below) to bring down the 5V to more Jee-friendly levels:

IMG_3664

The MCP1702 on the JeeNode will handle the ~13V that the serial port is providing (it is at the limit indeed). Some more pictures of the setup:

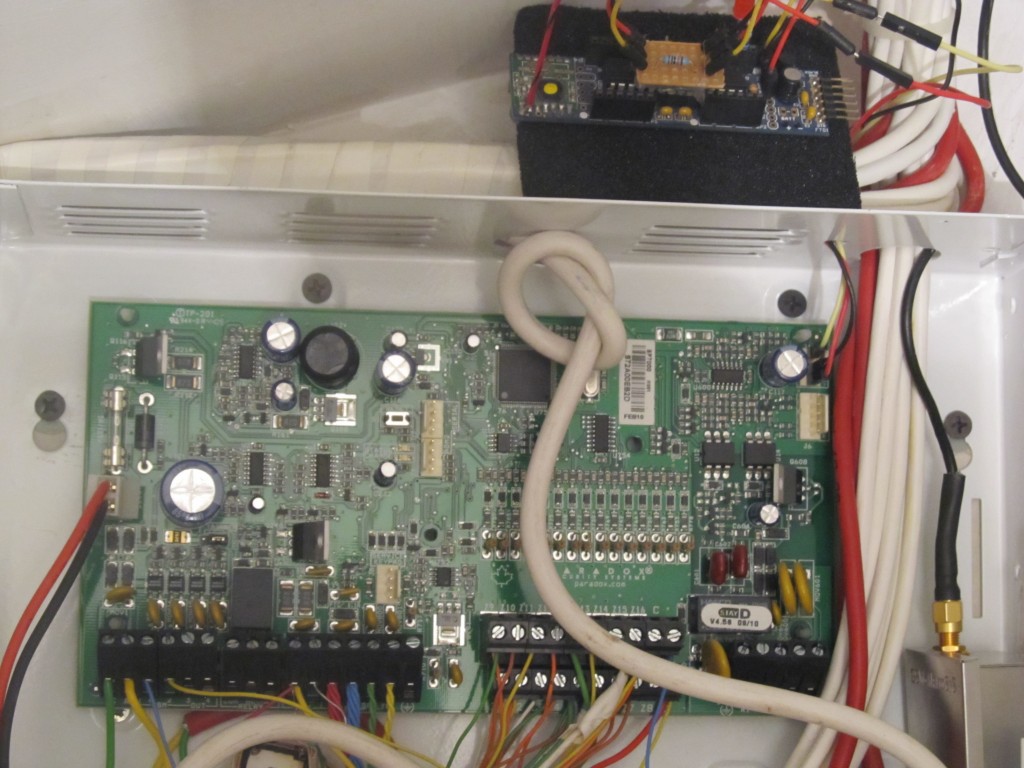

IMG_3665 IMG_3663 IMG_3662

Finally here is my code:

#include <JeeLib.h>      // https://github.com/jcw/jeelib
#define myNodeID 3       // RF12 node ID in the range 1-30
#define network 210      // RF12 Network group
#define freq RF12_868MHZ // Frequency of RFM12B module

#define RETRY_PERIOD 250    // How soon to retry (in ms) if ACK didn't come in
#define RETRY_LIMIT 5     // Maximum number of times to retry
#define ACK_TIME 25       // Number of milliseconds to wait for an ack

char inData[38]; // Allocate some space for the string
byte index = 0; // Index into array; where to store the character

#define LED 6


typedef struct {
     byte armstatus;
     byte event;
     byte sub_event;
     byte dummy;
 } Payload;

 Payload paradox;


void setup() {
    pinMode(LED,OUTPUT);
    blink(100);
    delay(1000);

    rf12_initialize(myNodeID,freq,network); // Initialize RFM12 with settings defined above

    Serial.begin(9600);
    Serial.flush(); // Clean up the serial buffer in case previous junk is there
    Serial.println("Paradox serial monitor is up");

    blink(1000);
    serial_flush_buffer();
}

void readSerial() {
    while (Serial.available()<37 )  {} // wait for a serial packet
    {
        index=0;
        while(index < 37) // Paradox packet is 37 bytes
        {
            inData[index++]=Serial.read();
        }
            inData[++index]=0x00; // Make it print-friendly
    }

}

void loop()
{
  readSerial();

  Serial.println(inData);

  if((inData[0] & 0xF0)==0xE0){ // Does it look like a valid packet?
    paradox.armstatus=inData[0];
    paradox.event=inData[7];
    paradox.sub_event=inData[8];
    rfwrite(); // Send data via RF
    blink(50);
  }
  else //re-align buffer
  {
    blink(200);
    serial_flush_buffer();
  }
}

void serial_flush_buffer()
{
  while (Serial.read() >= 0)
   ; // do nothing
}

void blink(int duration) {

  digitalWrite(LED,HIGH);
  delay(duration);
  digitalWrite(LED,LOW);

}


// Wait a few milliseconds for proper ACK
  static byte waitForAck() {
   MilliTimer ackTimer;
   while (!ackTimer.poll(ACK_TIME)) {
     if (rf12_recvDone() && rf12_crc == 0 &&
        rf12_hdr == (RF12_HDR_DST | RF12_HDR_CTL | myNodeID))
        return 1;
     }
   return 0;
  }



//--------------------------------------------------------------------------------------------------
// Send payload data via RF
//-------------------------------------------------------------------------------------------------
 static void rfwrite(){

   for (byte i = 0; i <= RETRY_LIMIT; ++i) {  // tx and wait for ack up to RETRY_LIMIT times
      while (!rf12_canSend())
        rf12_recvDone();
      rf12_sendStart(RF12_HDR_ACK, &paradox, sizeof paradox);
      rf12_sendWait(0);           // Wait for RF to finish sending
      byte acked = waitForAck();  // Wait for ACK
      if (acked) {
        return;
      }      // Return if ACK received

   delay(RETRY_PERIOD);     // If no ack received wait and try again
   }
 }

The code is running for few hours already and all is as expected.

I have a Raspberry Pi with RFM2Pi board running a read-only Raspbian that does my home automation, it captures the wireless packets using a node-red flow. With this new data available, my smart house will be able to know where its inhabitants are (PIR) and take various decisions based on that. I can also use the window/door state information (Reed switches) for smarter climate control, i.e. turn off the thermostat in a room that has the window open.
