MQTT topic tree structure improvements

I’ve been unhappy with my old MQTT topic tree structure for quite some time now and did some thinking/research on how to improve it. Google pointed me to Tinkerman’s article on similar subject, and I started planning on improvements.

I will repeat a quote I used in my last post “If you can’t measure it, you can’t improve it”, only this time re-phrase it s “If you can’t visualise it, you can’t improve it”. Yes, my first effort would be to visualise my MQTT topic tree and the rest should be fairly easy.

Ben Hardill  had done some excellent work on the subject and his D3 MQTT topic tree visualizer is exactly what I needed. It was quite tricky to get it to work. I wanted to use the new Mosquitto MQTT support for websockets, so I had to upgrade to that new version. Websocket support must be explicitly enabled when building Mosquitto, thankfully Jeremy Gooch has created *excellent* instructions for doing that, I could not have done it without these.

Finally, I had to modify Ben’s mqttws31.js file to work with Mosquitto 1.4, my fixed version is on Github.

With the visualization working, I did about 1003 iterations to get to the following structure, still lots of nodes to add and in rough shape:

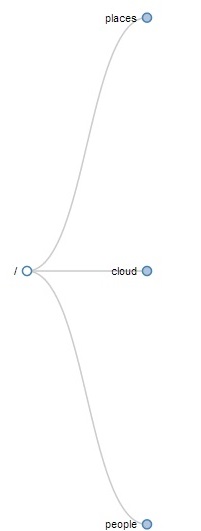

root



The root contains three folders to group my connected things into the categories “places”, “cloud” and “people”. I plan to add more categories there, for example “objects” to track vehicles.

The “places” will contain places and properties that are part of my IoT home automation system, starting with “our place”:

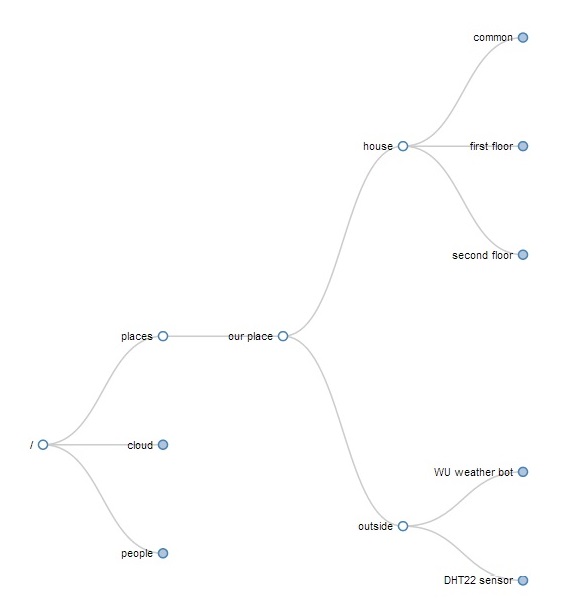

our place

“Our place” is a house with garden, so I broke this in two: the “house” and “outside”. The “house” is branched into three sub-categories: “common”,”first floor” and “second floor”. The “common” section will contain common components that can’t be grouped otherwise. The “outside” will obviously group anything in the garden like outside conditions,greenhouse, front door etc (all WIP)

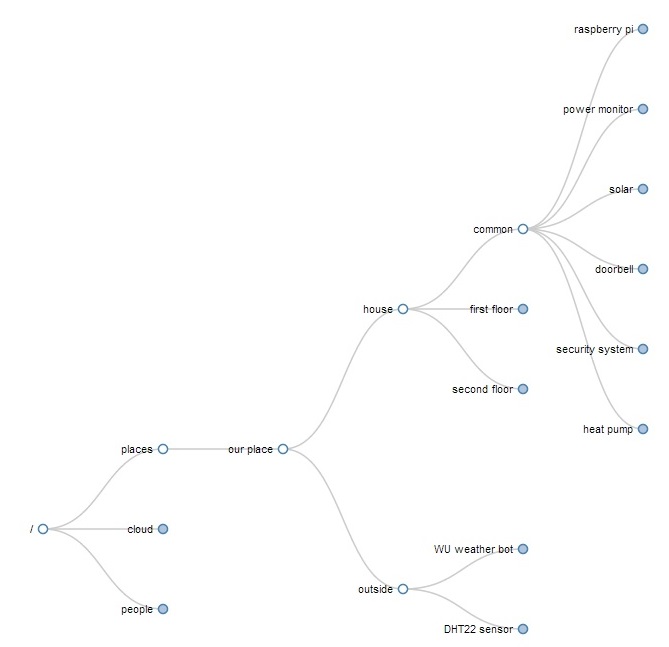

The “Common” category currently has these leaf nodes:



common

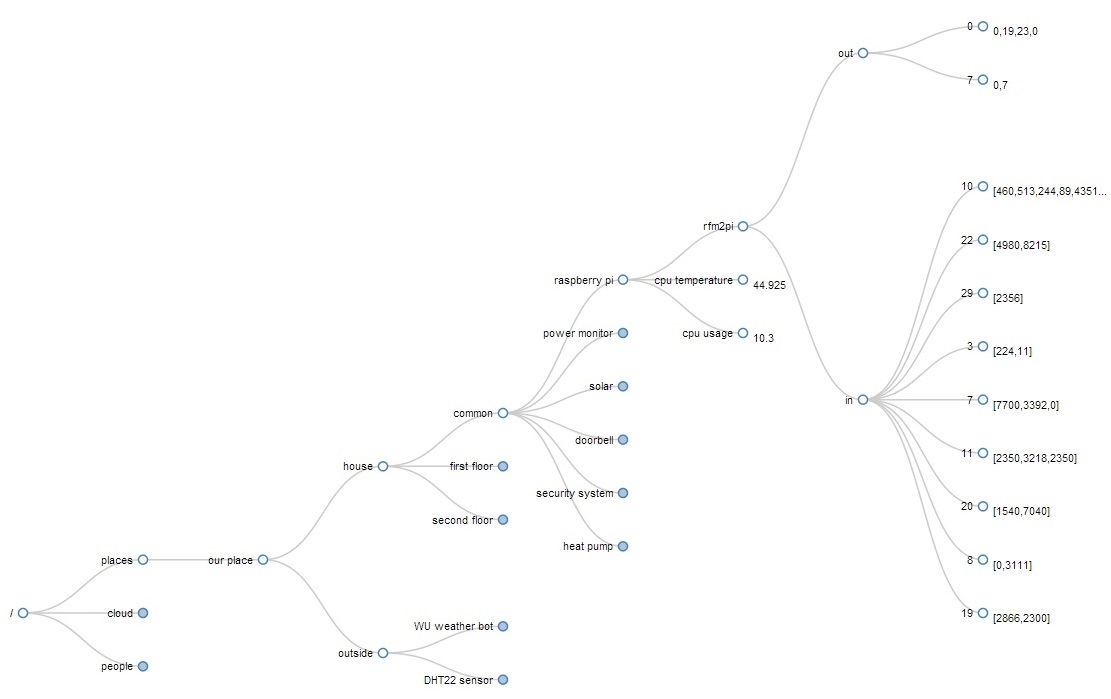

The “raspberry pi” branch expanded:



raspberry pi

The “rfm2pi” leaf represents the the rfm2pi board that handles the wireless transmissions, it has incoming and outgoing leafs. The “out” topic is used to transmit, I use it to send time packets every 5 minutes for example and also to send control packets to remote nodes. Node-RED subscribes to the different NodeID leafs in the “in” topic to handle the raw packets of data and further process it, feeding the other branches with processed data.

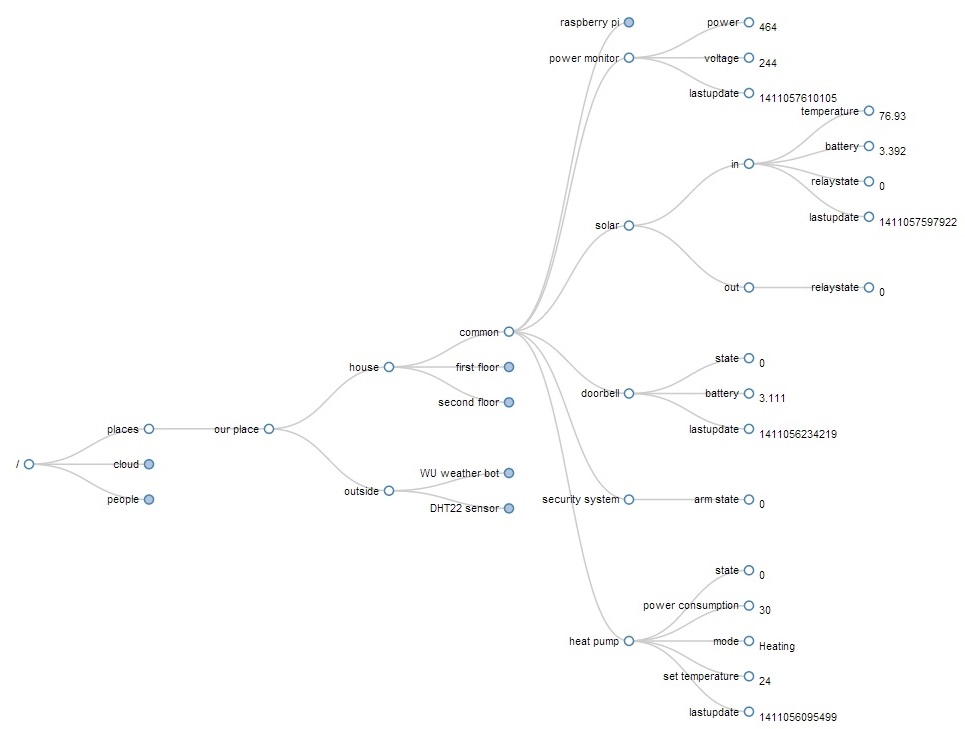

The other leafs in this branch are:

other_common



The “power monitor” node data is provided by my sensing shield project, still working nicely.

The “solar” node data is provided by the hot water tank controller I described here, the firmware has changed notably from then, but the hardware is same. Note that it is a bi-directional node with “in” and “out” leafs because it can control the heater element in the water tank as well should the sunshine be less than needed to heat up the water.

The “doorbell” node is fed by my IoT doorbell project.

The “security system” node is fed by my home security system interface project.

The “heat pump” node is still work in progress, I plan to have both “in” and “out” sub-topics as it can both control and provide information about the heat pump state. Using my Daikin controller project there.

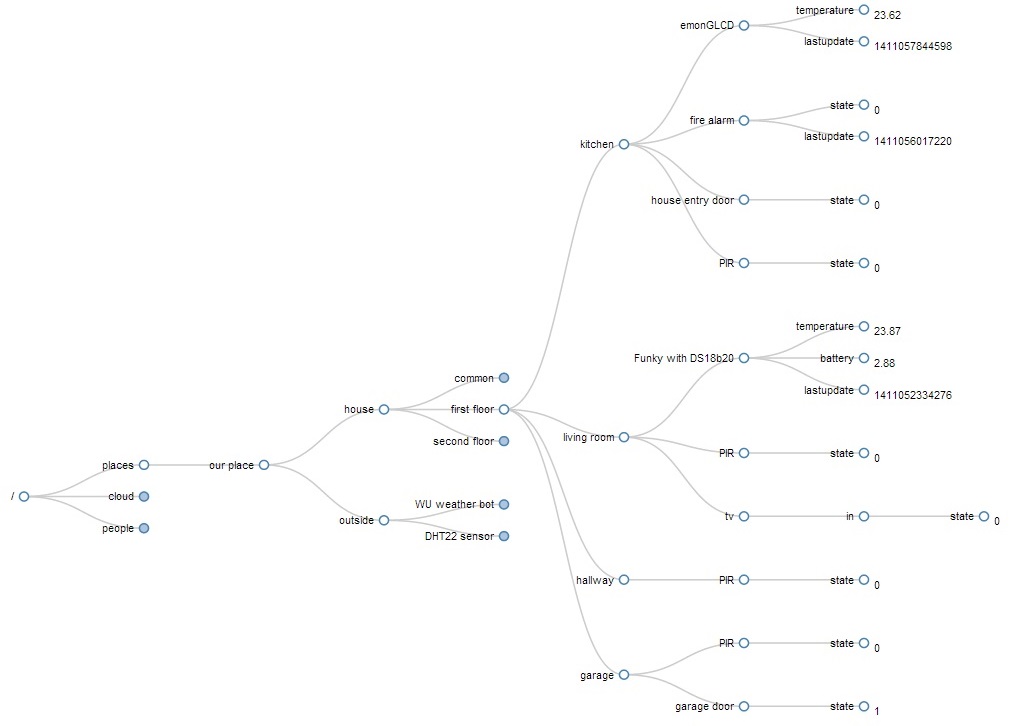

The “first floor” branch has the following structure:

first floor





My friend Glyn Hudson of OpenEnergyMonitor has sent me an EmonGLCD unit as a gift, this is the data provider for temperature in the “kitchen” node.

I have a fire sensor alarm project that is feeding the “fire alarm” node in the “kitchen” branch.

The house’s door, window and PIR states are fed by my security system interface project. That data helps the central heating system, I plan to stop the room thermostats if a window is open.

Living room temperature is provided by a Funky+DS18b20 project.

TV status is provided by the device tracking project. I also can control its state using the LG TV controller project.

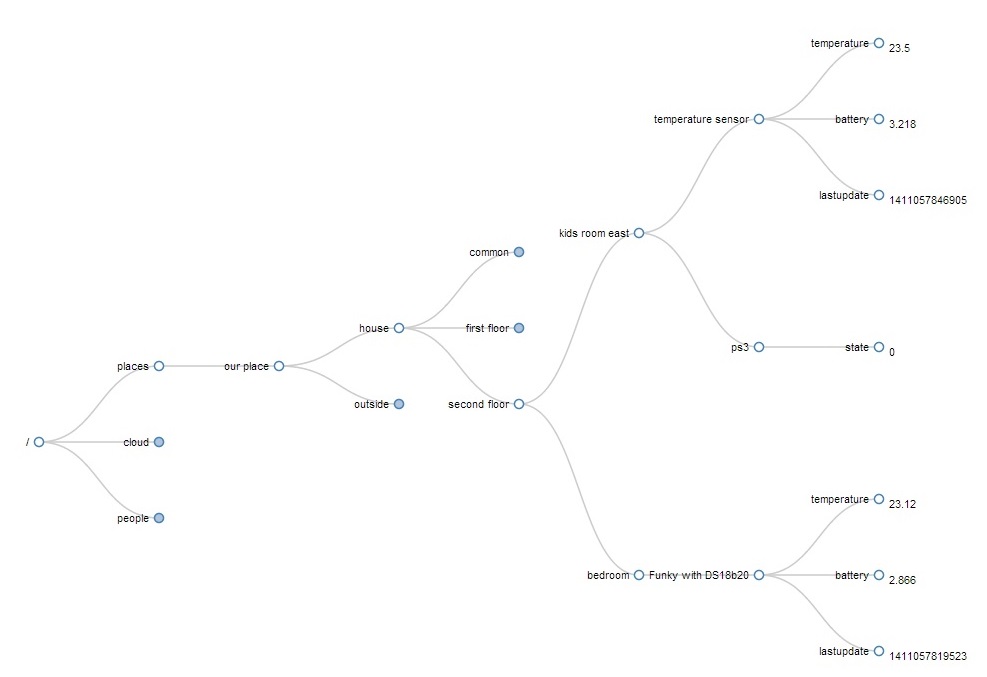

“Second floor” branch has lots of to-dos, but in its current shape looks like this:

second floor



Room temperature data providers are  Funky+DS18b20 project.

PS3 game console status is fed by the device tracking project.

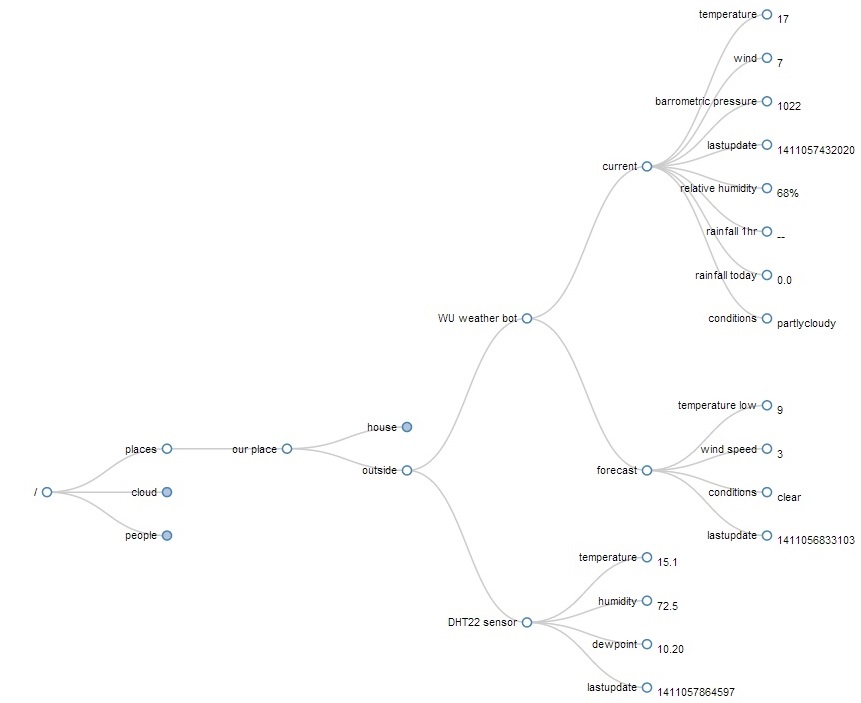

“Outside” branch looks like this, again I do have still more branches to add:

outside





I have two software bots to feed WeatherUnderground’s forecast and current weather data, quite practical since I do not have rain/pressure/wind sensors available. I use the forecast data to send myself frost alerts and prepare the garden for such events. Still need to blog about these, as I am doing all this in Node-RED now.

The Funky+DHT22 project is the data provider for outside temperature/humidity. That data is being enriched by adding calculated  dew point as well.

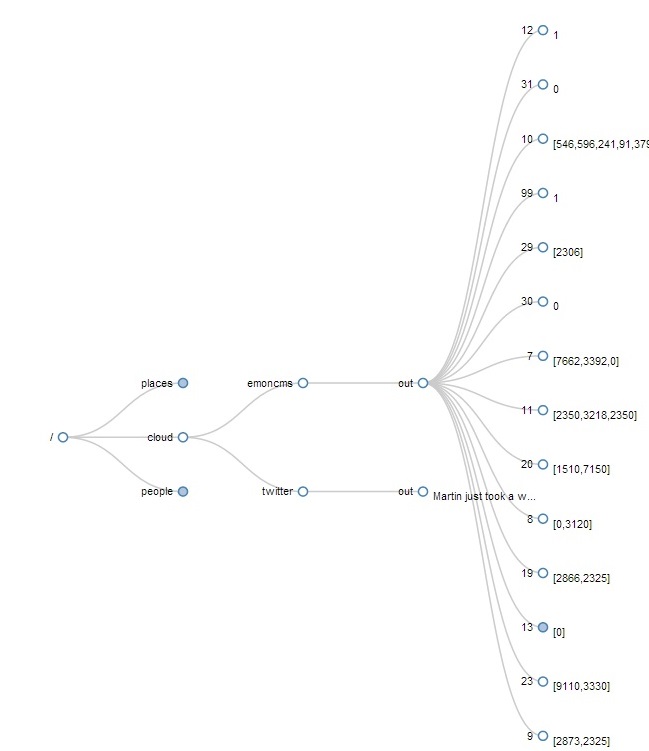

The “cloud” branch is naturally grouping all cloud connected “things” like EmonCMS, Pushbullet, Twitter, email, Twilio etc. Still WIP.

cloud



Node-RED flows watch over the emoncms/out topic and send that data to EmonCMS.

The twitter/out topic is what gets published to my house’s Twitter account. Follow it 🙂

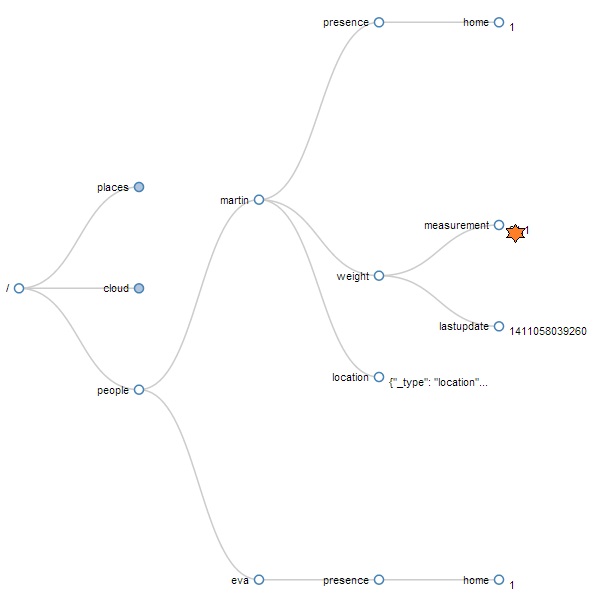

..and finally the “people” branch:

people



Presence detection project feeds my and wifey’s presence at home topics.

Weight is being tracked with my keypad project.

My location is being tracked with OwnTracks, still need to blog about that project.



That’s roughly where I stand now on my MQTT topic tree restructuring project. I enjoy looking at the D3 visualizer, it is animated and data flies in as it arrives, very beautiful indeed. I like to think of it as my house’s central nervous system visualised.









Page views: 13603

4 thoughts on “MQTT topic tree structure improvements

    • Lovely, I wish I knew about shiftr,io earlier, would have made this task so much easier. Do you plan to show the ‘leaf’ value as as I have them? This way the visualization becomes a report on its own (add the cost of some added clutter). I’d also love to embed these, would there be a better way than IFRAME?
      shiftr.io

  1. Ha! I have a very similar system to yours and also ran into similar issues/solutions.
    I use mosquitto too, but haven’t build the websocket enabled version yet. I’ve been using node/socket.io to pipe mqtt-websocket-mqtt for a while now. But eventually I also just wanna use Mosquitto.

    I’ve also tweaked a version of the topic tree js to work with my system. It’s definitly the best way to visualize this. I only wish there was a software that let move branches of the tree somewhere else, delete/change their values, etc.

    I like how you organized things, having the cloud branch for instance.
    I have a home root branch that I end up adding too many things…
    Also your idea of in/out nodes seems better then mine…. have activation-only branches, where the topic is the action and the message is not important. (light/1/off). Then I have state branches that are updated once that light is on for instance (light/1/state on)

    Your blog is awesome! Thanks for documenting it all… It makes me want to do the same! =D

    • I used linux’s ‘SED’ command to search and replace Node-RED’s JSON and so move MQTT topic branches around, manually doing that would be nightmare..
