Experimenting with a 3.5″ TFT

I decided to test a 3.5″ TFT version of the TFT32 project as the original version’s 2.4″ 320×240 TFT is a bit small-ish. The TFT I chose is an ILI9488 480×320 3.5″ with resistive touch.

The upgrade was pretty straightforward, because of the hardware abstraction layer in the code I practically only had to adapt the TFT drivers for the ILI9488 specifics. I use the ILI9488 in 4 wire SPI mode, this only allows for RGB666 i.e. 18bpp. That’s three bytes per pixel, so memory usage is up compared to the previously used RGB565 16bpp or two bytes per pixel. Since the GUI library uses double video buffering, the increased resolution and bpp requirements mean more memory is used. To mitigate this, I chose to use an ESP32 WROVER SoC that includes external RAM available.

In addition, I modified the RFM69 footprint, so that I can alternatively use LoRa modules like the RFM95.

  • Back
  • Front of PCB

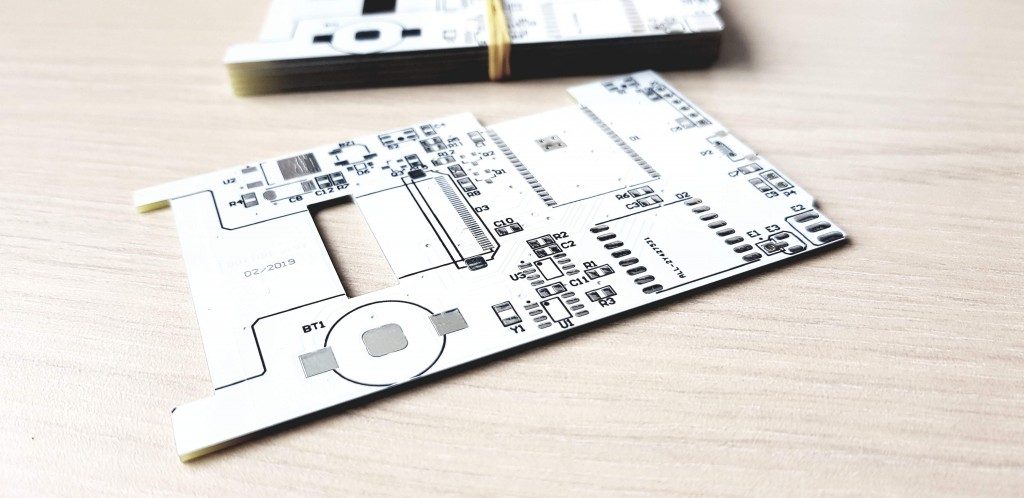

  • PCBs from allpcb.com

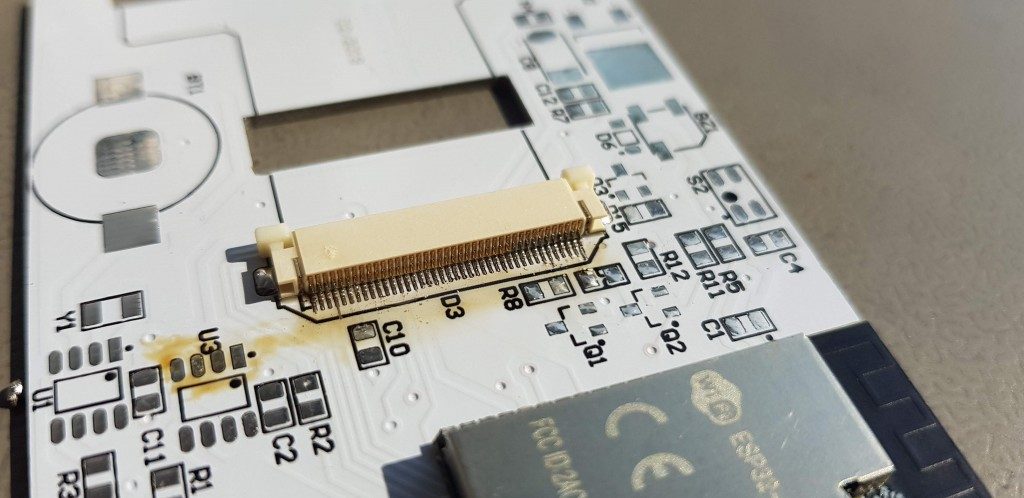

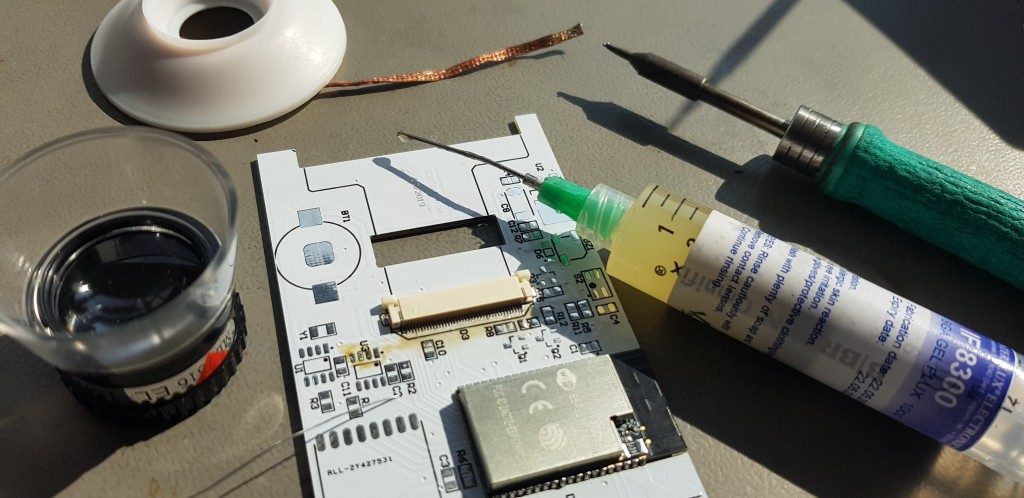

  • Hand soldering of the 40pin FPC connector .. ouch!
  • Looks fine..

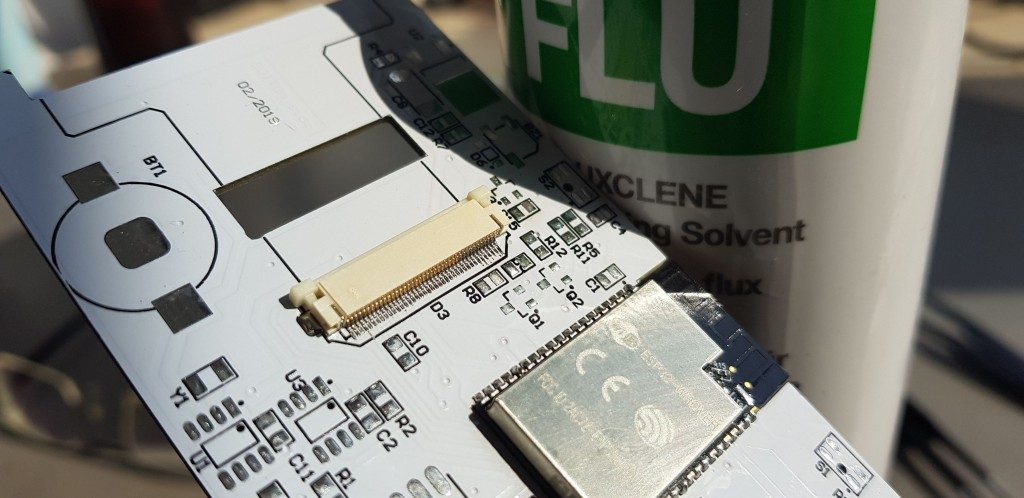

  • Cleaning up the flux mess

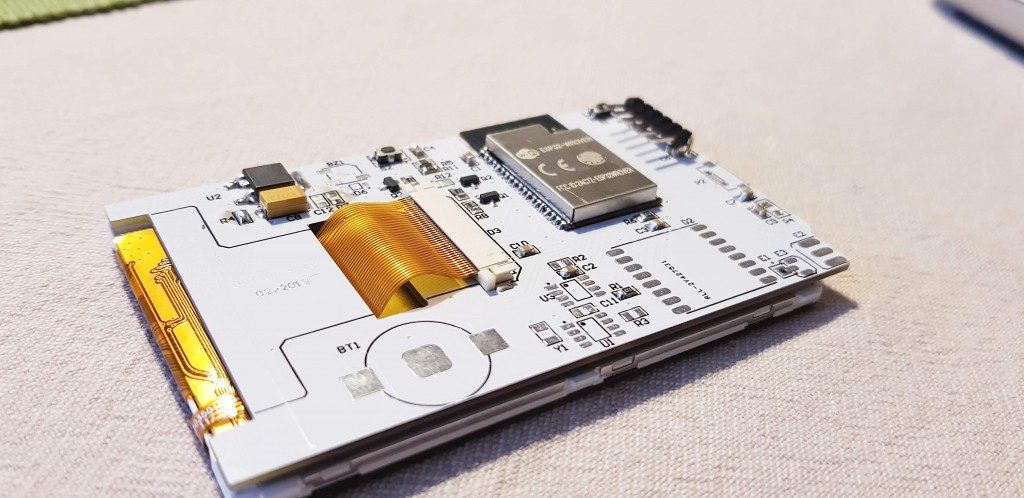

  • Bare minimum of components to test it

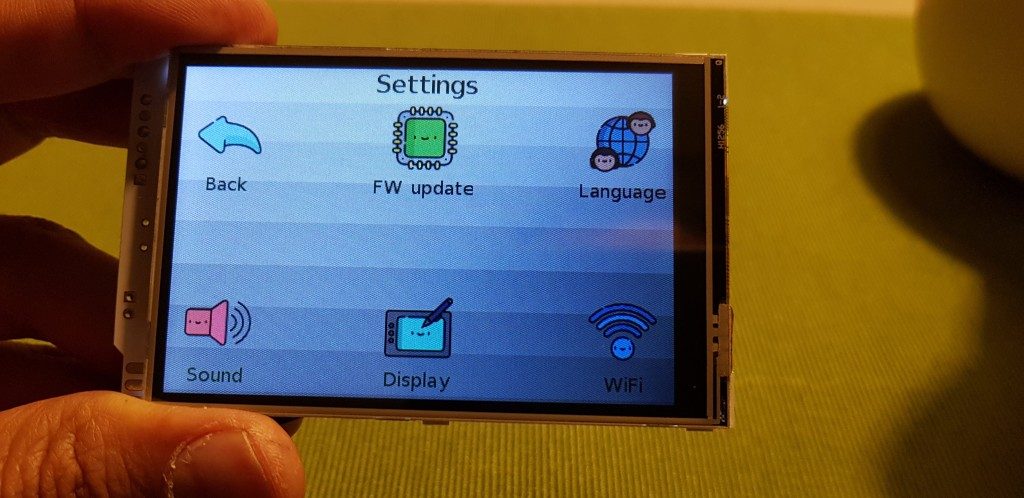

It is alive 🙂

I managed to get the ILI9488 to work well clocked at 40MHz with DMA. It is reasonably fast, see it in action here:

3.5″ ILI9488 TFT

Bigger is better they say. Or is it? This TFT costs twice the 2.4″ version, requires significantly more memory to run.
