E-meter PCB ready

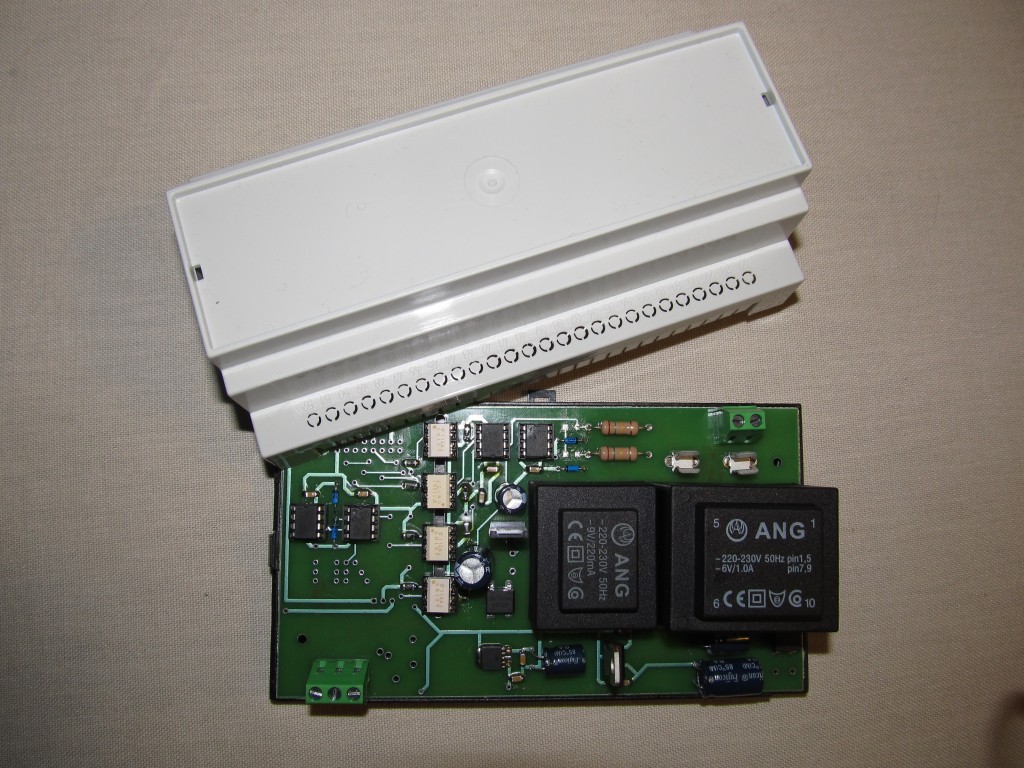

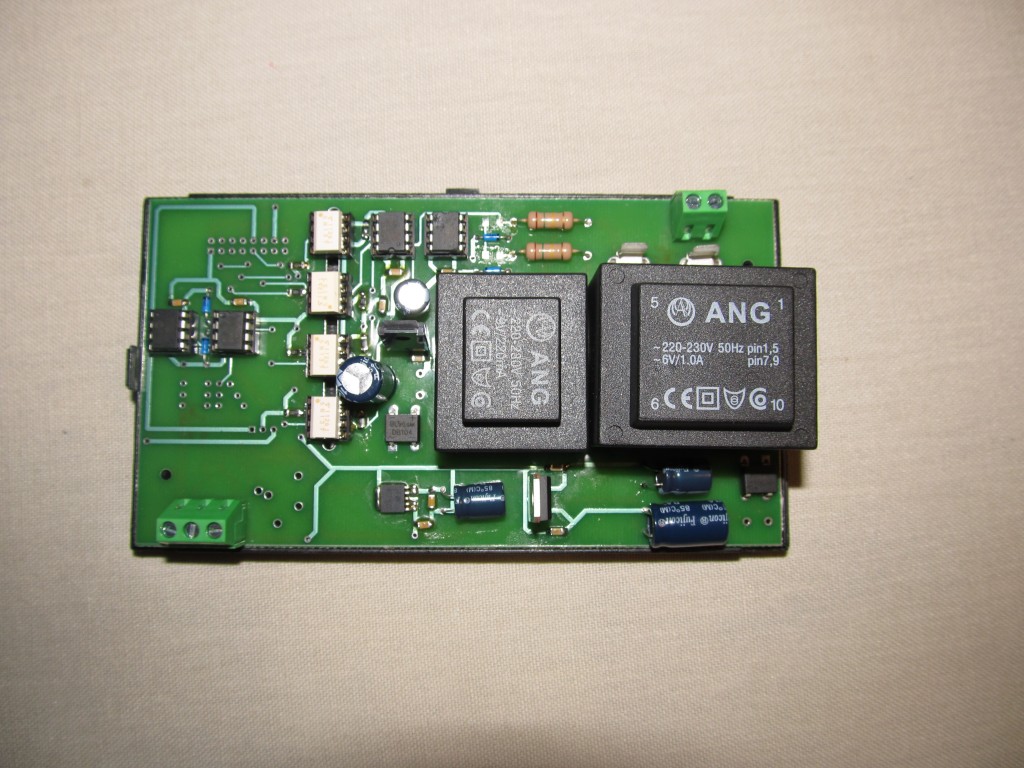

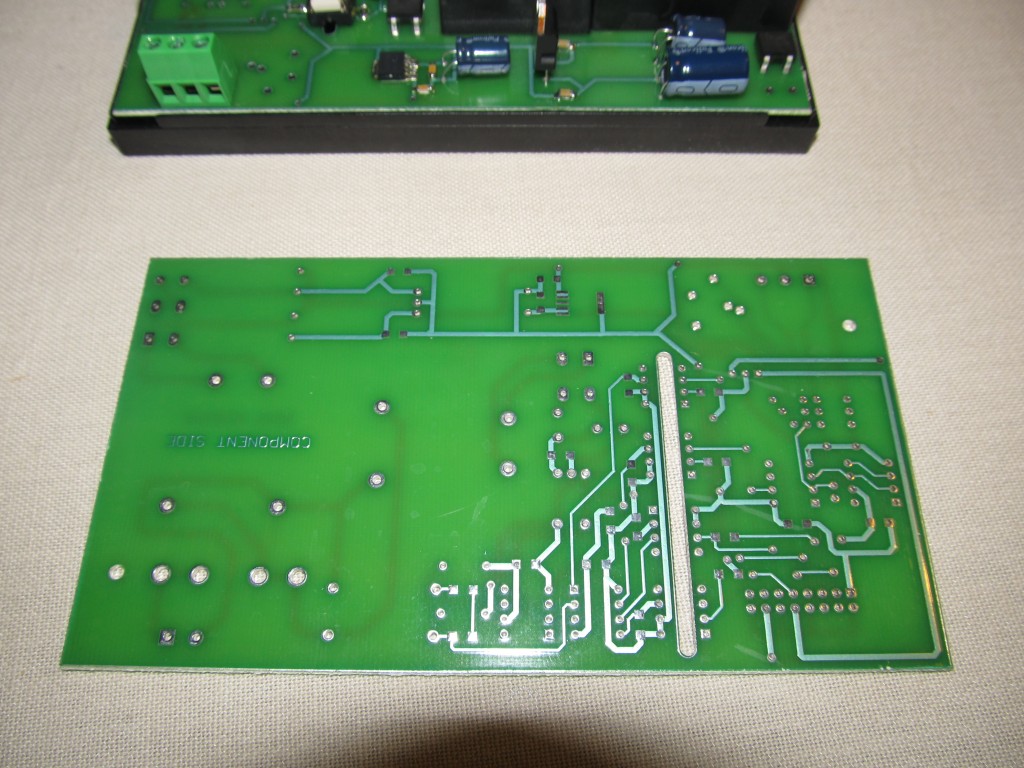

I have received the e-meter PCB and started making it. I forgot to buy couple elements and the 2×8 header won’t fit due to wrong footprint, but other than that it looks good:
