RFM12b to serial PCB for my Pi

[edit] This board is now available for sale in my store

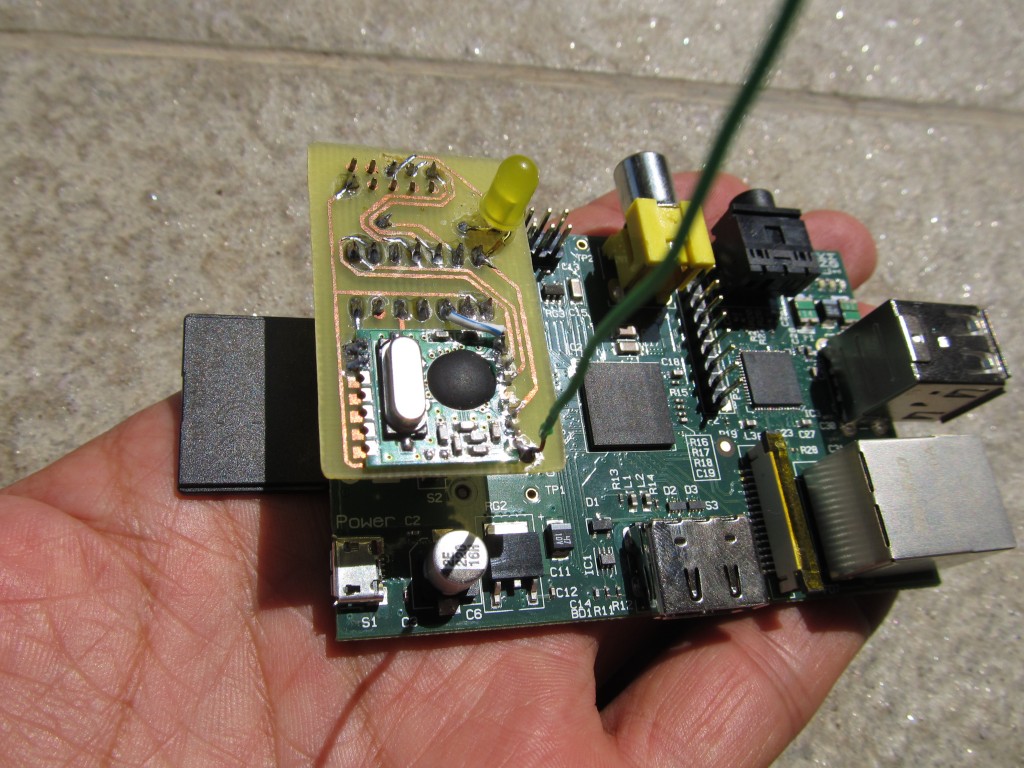

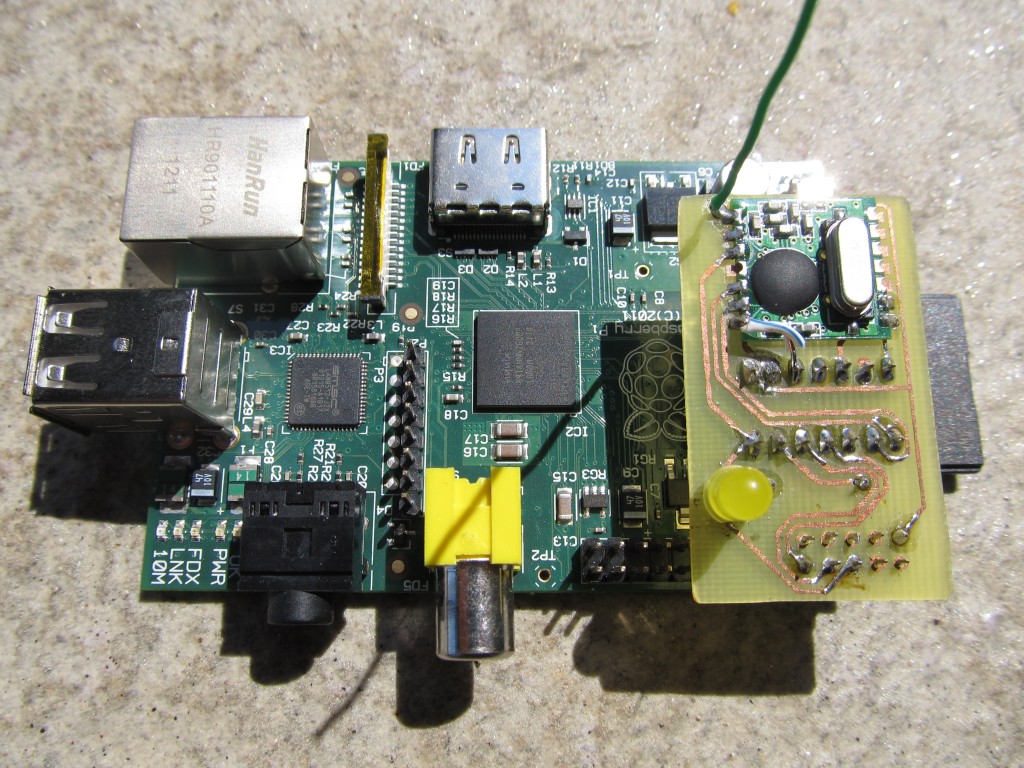

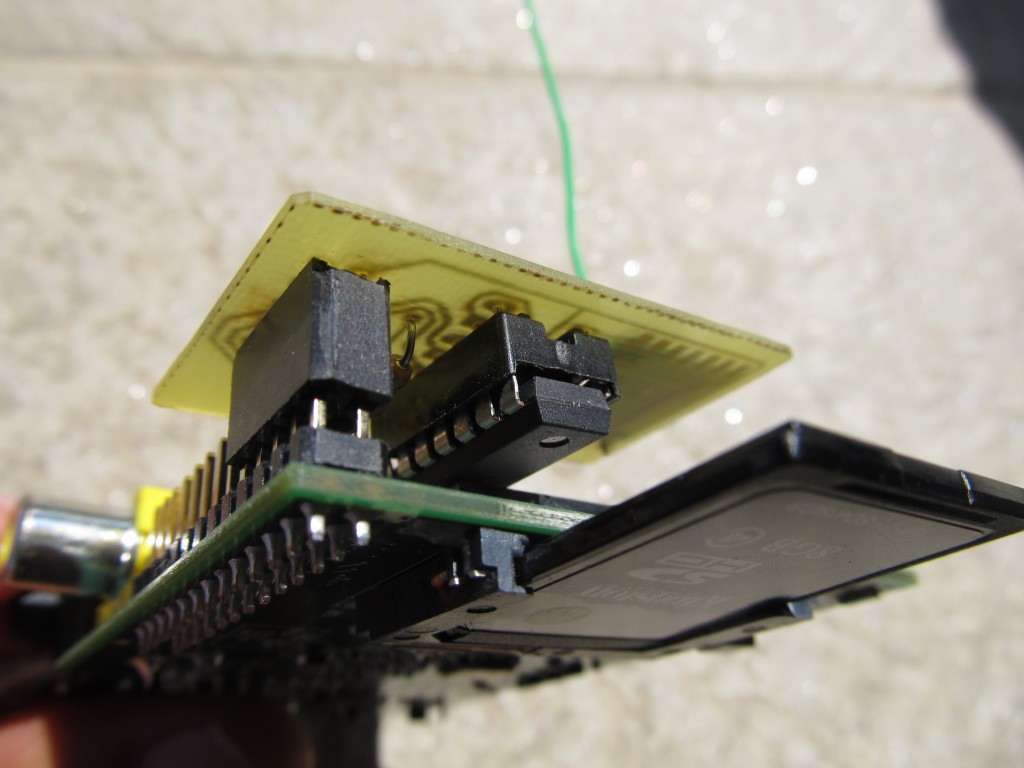

Here is a little project that I worked on last weekend: A small home-made PCB to permanently fit the RFM12b-to-Serial on my Raspberry Pi. Although I am aware of at least couple on-going efforts to have native SPI support for the RFM12b, these are relatively complex and require kernel modifications. My solution may not be optimal, but is working just fine. So I layed out a single sided PCB with just a RFM12b+Attiny84+ a LED in Ealgle and 30 minutes later was already working on etching it. Here is the result, it has been working for a week now:
