USB on the Funky

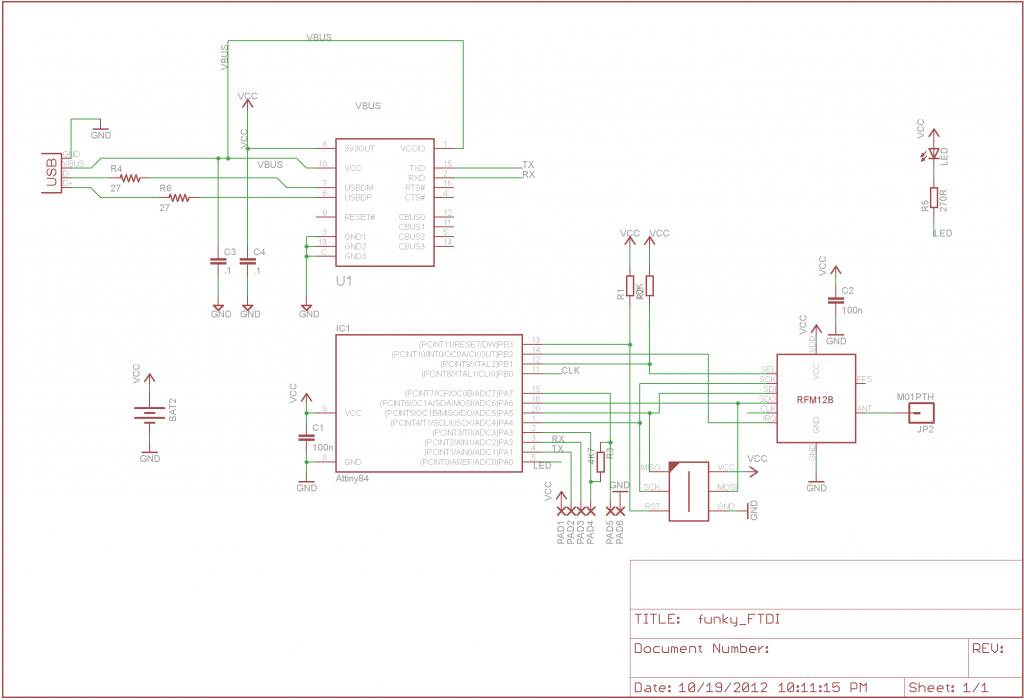

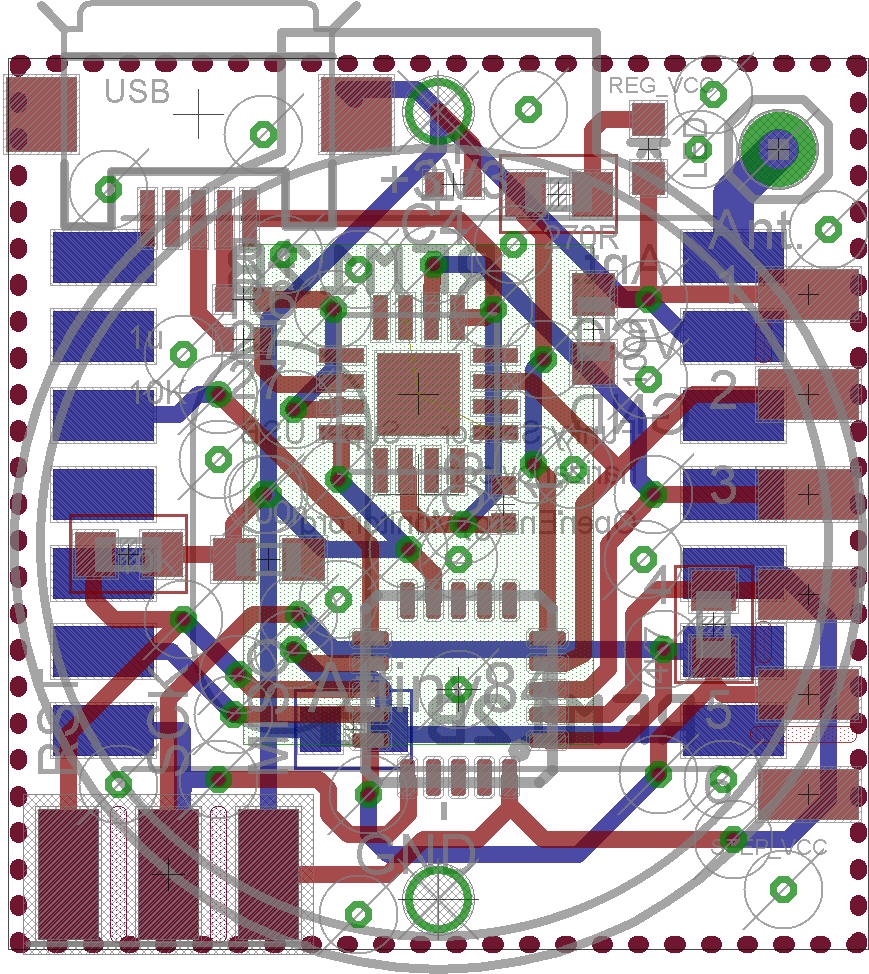

I recently came across a neat little (literally) project called MicroFTX. It is incredibly small USB to serial adapter board based on FT230XQ (datasheet) from FTDI’s new X-Chip series. I thought it would be neat to throw in some native USB support on the Funky, so I did a small experiment. This is all work in progress and I am not sure I want to go this way at all, just toying with the layout now. There is a working OptiBoot for Attiny84 out there, so maybe also worth giving it a try. I had to switch the Attiny to QFN package in order to accommodate it all:
